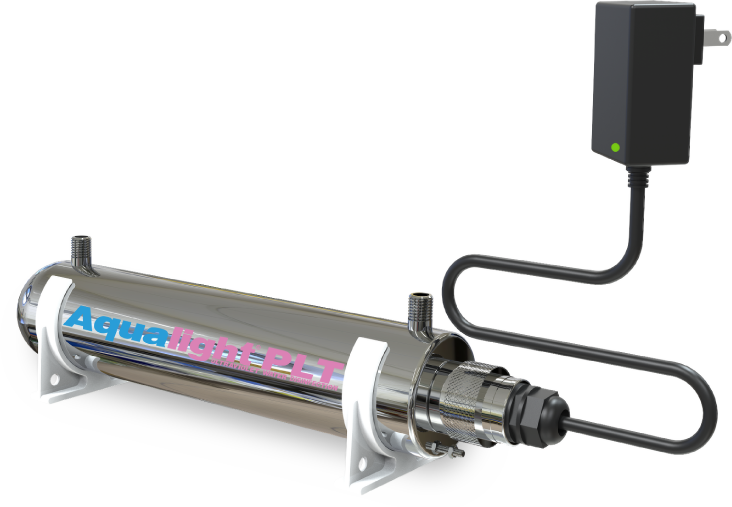

Model PLT1 - PLT2 - PLT4
Flow rate 1gpm, 2gpm, 4gpm,
Resitential POU/POE, Operation
status visuabl and audible
Model PLT6 - PLT8 - PLT12
Flow rate 6gpm, 8gpm, 12gpm,
Resitential POU/POE, Operation
status visuabl and audible
| Model | PLT1 | PLT2 | PLT4 | PLT6 | PLT8 | PLT12 |
| Flow Rates @ 30mJ/cm² |
1gpm, 3.8lpm, 0.25m³/hr |
2gpm, 7.5lpm, 0.5m³/hr |
4gpm, 15.1lpm, 1.0m³/hr |
6gpm,22.7lpm, 1.4m³/hr |
8gpm, 30.2lpm, 1.8m³/hr |
12gpm, 45.4lpm, 3.0m³/hr |
| Flow Rates @ 40mJ/cm² |
0.8gpm, 3.0lpm, 0.18m³/hr |
1.5gpm, 5.7lpm, 0.34m³/hr |
3gpm, 11.4lpm, 0.7m³/hr |
4.5gpm,17lpm, 1.0m³/hr |
6gpm, 22.7lpm, 1.4m³/hr |
9gpm, 34.1lpm, 2.0m³/hr |
| Inlet / Outlet | ¼” | ¼” or ½” | ½” | ¾” | ¾” | 1” |
| Ultraviolet Lamp |
GPH212T5L/4-LT 10 Watts |
GPH287T5L/4-LT 14 Watts |
GPH330T5L/4-LT 19 Watts |
GPH505T5L/4-LT 28 Watts |
GPH645T5L/4-LT 32 Watts |
G36T5L/4-LT 39 Watts |
| Quartz Sleeve | QS245 | QS331 | QS375 | QS535 | QS665 | QS890 |
| Basic Controller |
Part# BAP2011, 110V./50-60Hz. or BAP2022, 220V./ 50-60Hz., 6.5*4.5*2.8cm (2.6*1.8*1.1 in.) |
Part# BAP4011, 110V./50-60Hz. or BAP4022, 220V./ 50-60Hz., 11.6*6*2.6cm (4.6*2.4*1.03 in.) |
||||
| Features | Lamp Operating Indicator, Audible Lamp Failure |
Lamp Operating Indicator, Audible Lamp Failure, Optional GDCT-365 Lamp Life Countdown Timer |
||||
| ▶ Flow Rates Stated at 95% UV Transmittance of End of Lamp Life, 20ºC | ||||||

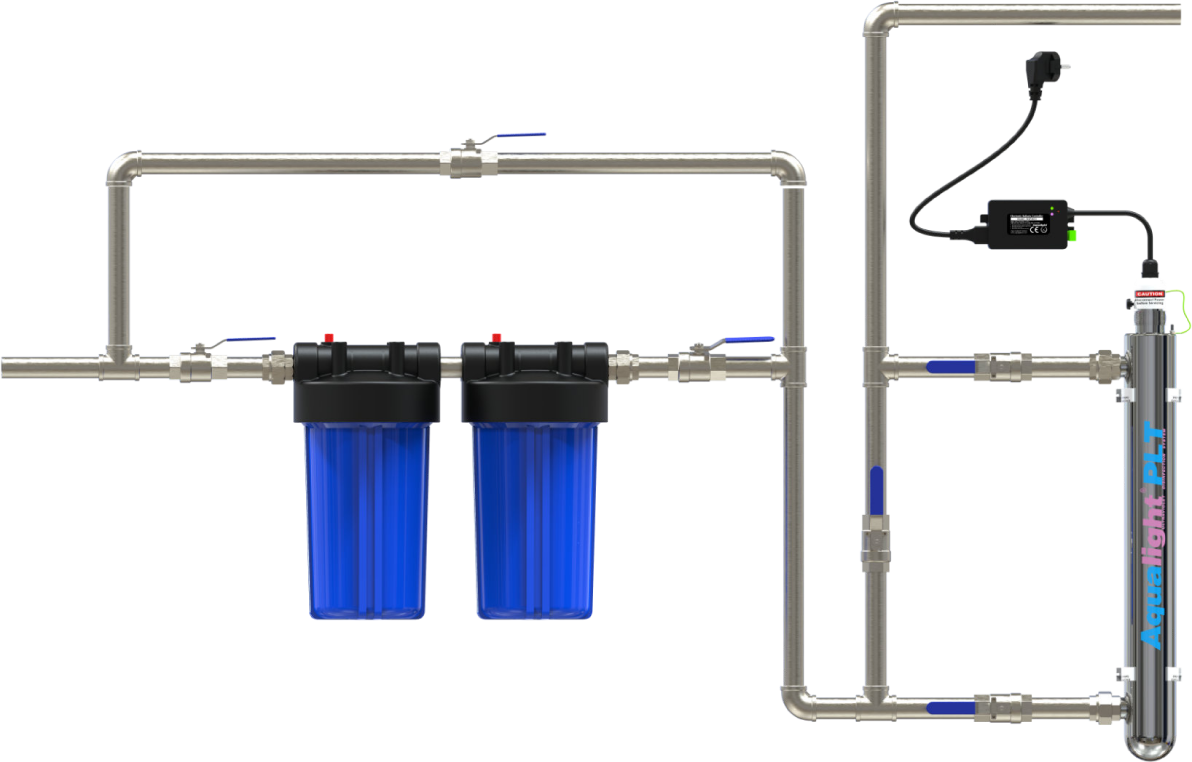

INSTALLATIONlayout

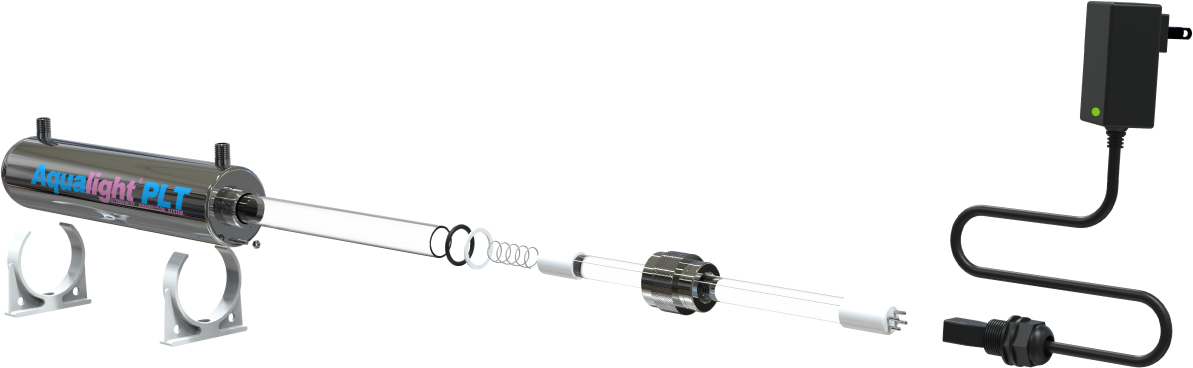

EXPLODEDview

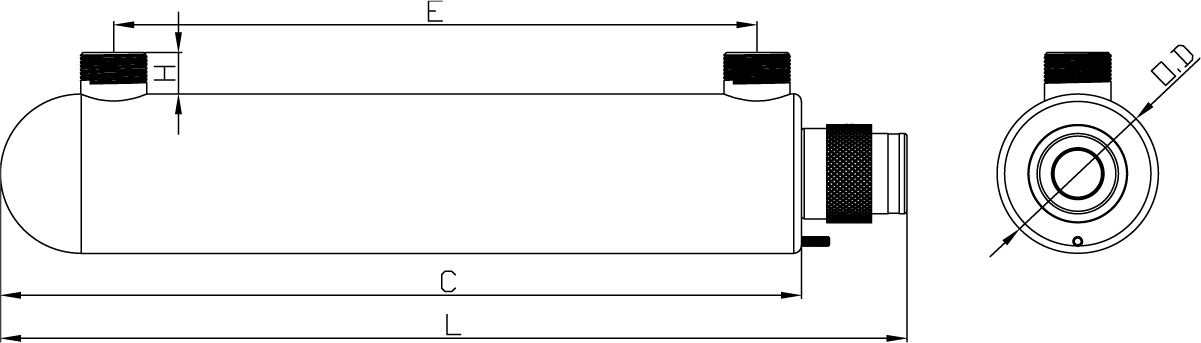

DIMENSIONdata
unit: mm
| Model No. | L | C | E | H | O.D. |
| PLT1 | 270 | 227 | 173 | 17 | 50.8 |
| PLT2 | 360 | 317 | 257 | 17 | 63.5 |
| PLT4 | 404 | 361 | 286 | 19 | 63.5 |
| PLT6 | 564 | 521 | 446 | 19 | 63.5 |
| PLT8 | 694 | 651 | 564 | 21 | 63.5 |
| PLT12 | 919 | 876 | 787 | 21 | 63.5 |
ULTRAVIOLETdosage
