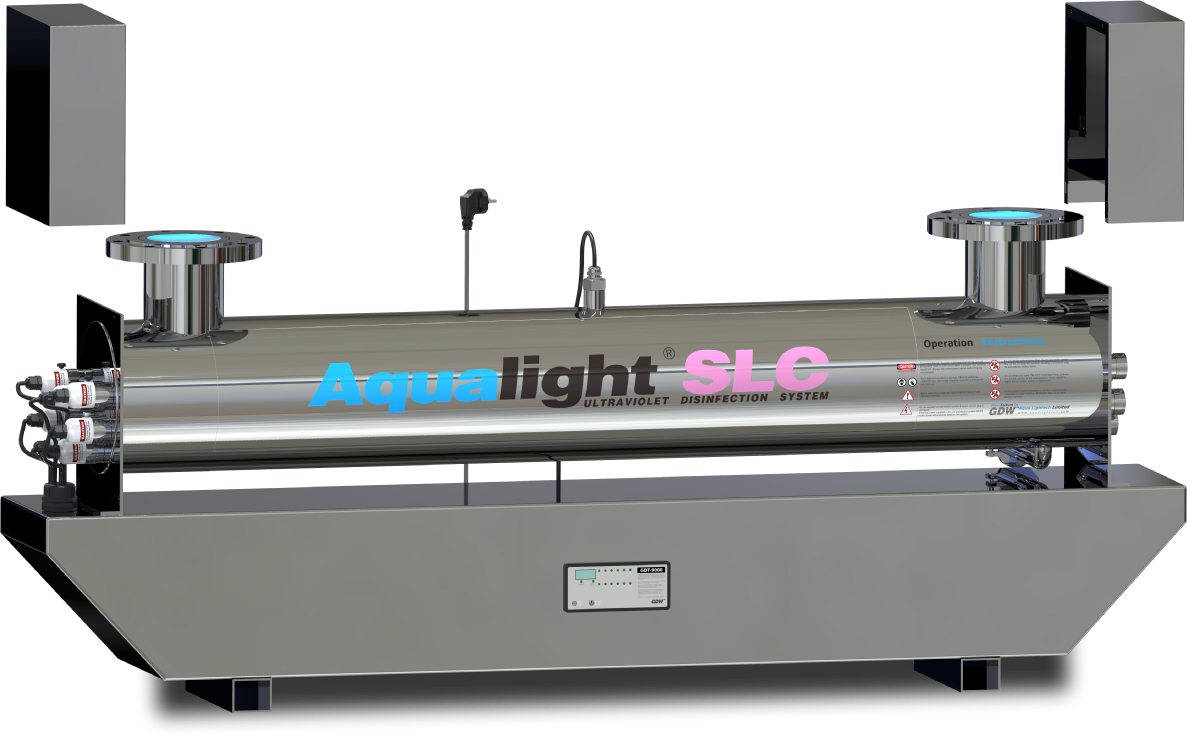

Model SLC200 to SLC600
Flow rate 200gpm up to 600gpm, Operation status visible
and audible, Lamp life timer 9000 hours, Total running days
| Model | SLC200 | SLC250 | SLC300 | SLC350 | SLC400 | SLC500 | SLC600 |
Flow Rates @ 30mJ/cm² | 200gpm (45m³/hr) | 250gpm (57m³/hr) | 300gpm (68m³/hr) | 350gpm (80m³/hr) | 400gpm (91m³/hr) | 500gpm (115m³/hr) | 600gpm (136m³/hr) |
Flow Rates @ 40mJ/ cm² | 150gpm (34m³/hr) | 188gpm (43m³/hr) | 225gpm (51m³/hr) | 263gpm (60m³/hr) | 300gpm (68m³/hr) | 375gpm (85m³/hr) | 450gpm (102m³/hr) |
| Inlet / Outlet | 4” | 4” | 4” | 4” | 6” | 6” | 6” |
| Ultraviolet Lamp | Part# GHO64T5L/4-LT, 155 Watts, 800mA, 254nm | ||||||
| Quartz Sleeve | Part# QS1575-BO, 1575mm, Both Sides Open | ||||||
| Ballasts | Part# GDB800155L2, 110V.-240V./50-60Hz | ||||||
Number of Lamp/ Sleeve/Ballasts | 4 | 5 | 6 | 7 | 8 | 10 | 12 |
| Timer Monitor | Lamp Operating Hours Monitor, Part No. GDT-9000 | ||||||
| Features | Lamp Operating Indicator, Audible Lamp Failure, Lamp Operating Hours up to 9000hr, Total Running Days, Dry Contact | ||||||
| Sensor | Optional, Part No. GDS254NM20-V | ||||||
| ▶ Flow Rates Stated at 95% UV Transmittance of End of Lamp Life, 20ºC | |||||||

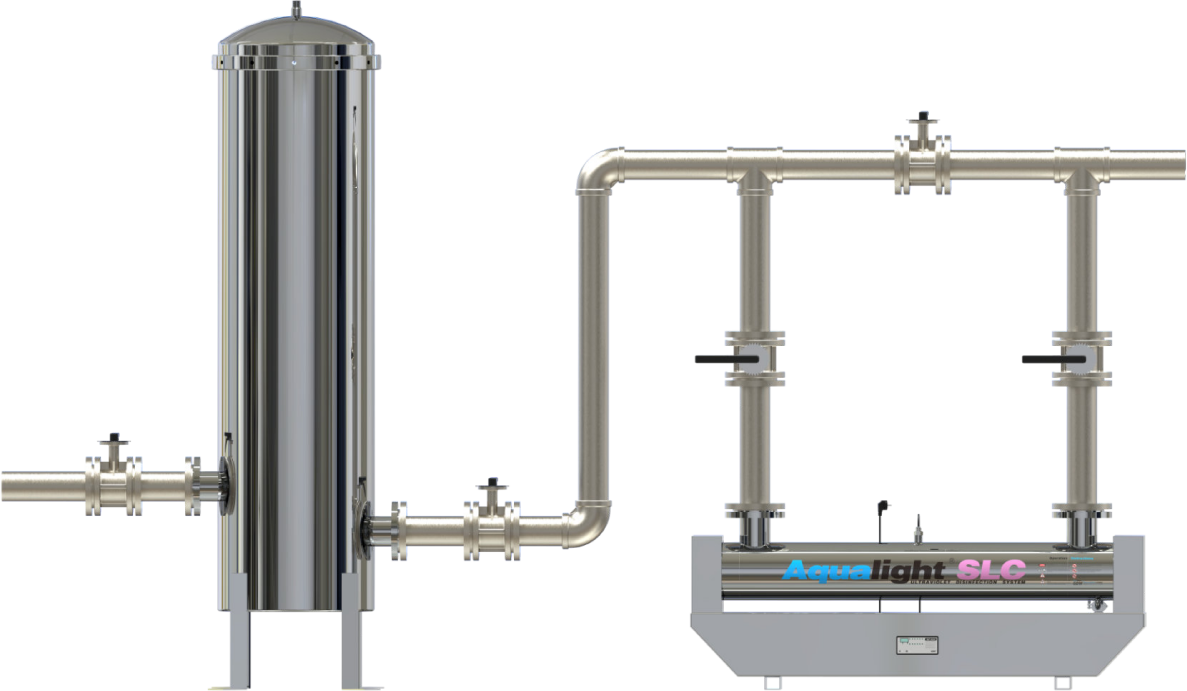

INSTALLATIONlayout

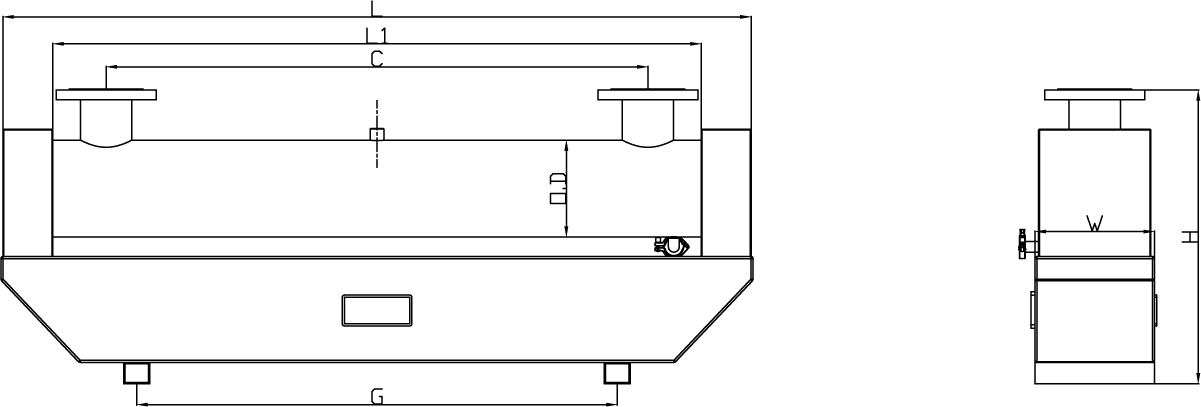

DIMENSIONdata
unit: mm
| Model No. | Lamp No. | L | L1 | C | O.D. | G | W | H |
| SLC200 | 4 | 1730 | 1510 | 1254 | 219 | 1105 | 275 | 690 |
| SLC250 | 5 | 1730 | 1510 | 1254 | 219 | 1105 | 275 | 690 |
| SLC300 | 6 | 1730 | 1510 | 1254 | 219 | 1105 | 275 | 690 |
| SLC350 | 7 | 1730 | 1510 | 1254 | 219 | 1105 | 275 | 690 |
| SLC400 | 8 | 1730 | 1510 | 1188 | 219 | 1105 | 330 | 690 |
| SLC500 | 10 | 1730 | 1510 | 1188 | 275 | 1105 | 330 | 690 |
| SLC600 | 12 | 1730 | 1510 | 1188 | 275 | 1105 | 330 | 690 |
