STORAGE TANK
ULTRAVIOLET
DISINFECTION

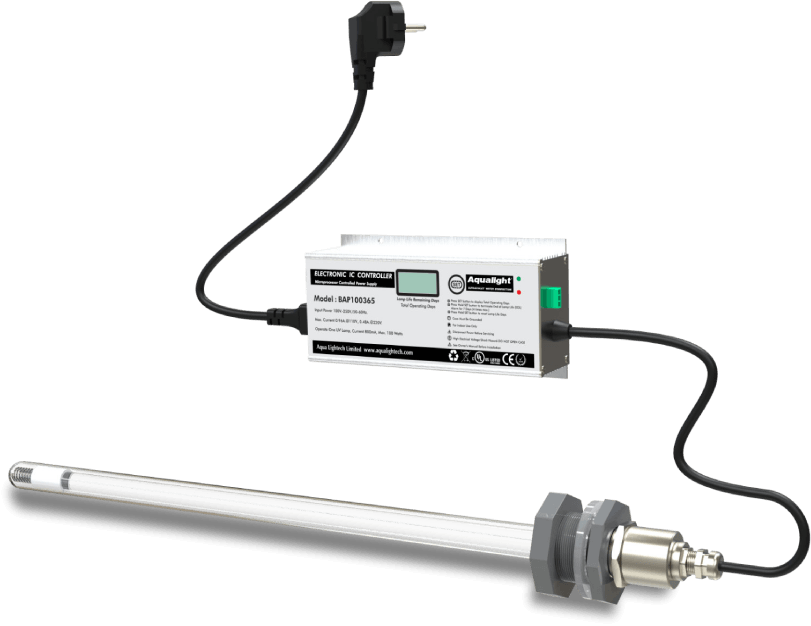

Advanced Model
TKUV28T · TKUV39T
TKUV80T · TKUV100T
STORAGE TANK
ULTRAVIOLET
DISINFECTION

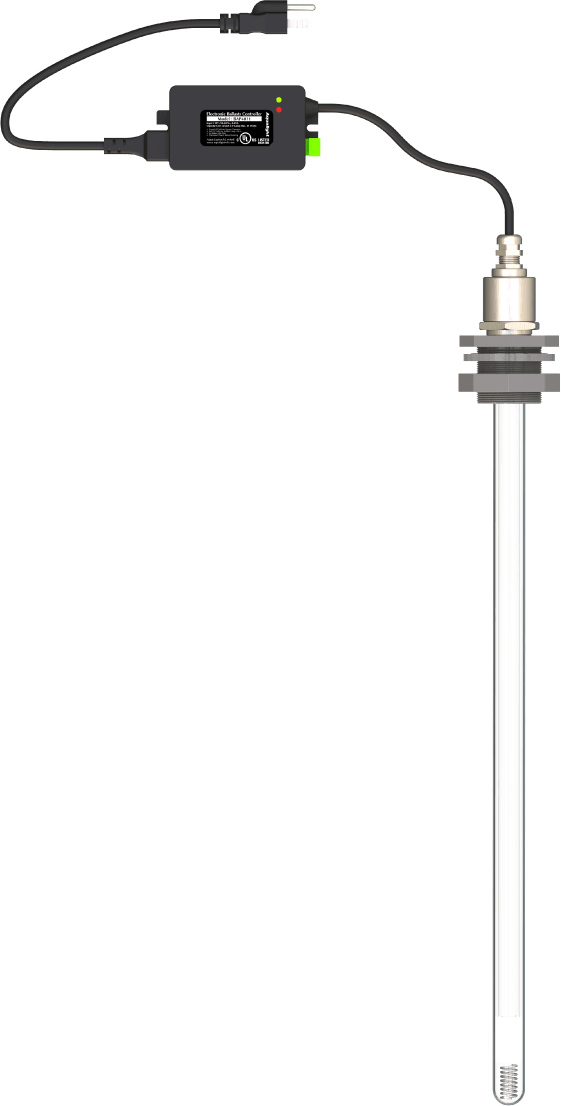

Basic Model
TKUV28 · TKUV39
| Model | TKUV28 | TKUV39 | TKUV28T | TKUV39T | TKUV80T | TKUV100T |
| Insertion Length | 535mm (21 in.) | 890mm (35 in.) | 535mm (21 in.) | 890mm (35 in.) | 890mm (35 in.) | 1082mm (43 in.) |
| Ultraviolet Lamp | GPH505T5L/4-LT, 28 Watts | G36T5L/4-LT, 39 Watts | GPH505T5L/4-LT, 28 Watts | G36T5L/4-LT, 39 Watts | GHO36T5L/4-LT, 80 Watts | GHO1052T5L/4-LT, 100 Watts |
| Quartz Sleeve | QS535 | QS890 | QS535 | QS890 | QS890 | QS1082 |
| Controller | Part# BAP4011(TK), 110V. / BATK4022, 220V. 6.5*4.5*2.8cm (2.6*1.8*1.1 in.) | Part# BAP400365(TK), Universal Voltage100V.-250V./50-60Hz., 18*9.5*5cm (7.1*3.7*2 in.) | Part# BAP100365(TK), Universal Voltage100V.-250V./50-60Hz., 18*9.5*5cm (7.1*3.7*2 in.) | |||
| Features | Lamp Operating Indicator, Audible Lamp Failure, Optional GDCT-365 Lamp Life Countdown Timer | Lamp Operating Indicator, Audible Lamp Failure, Lamp Life 365 Days Countdown, Total Running Days, Dry Contact | ||||
| ▶ Lamp Rated Life 9,000 hours | ||||||

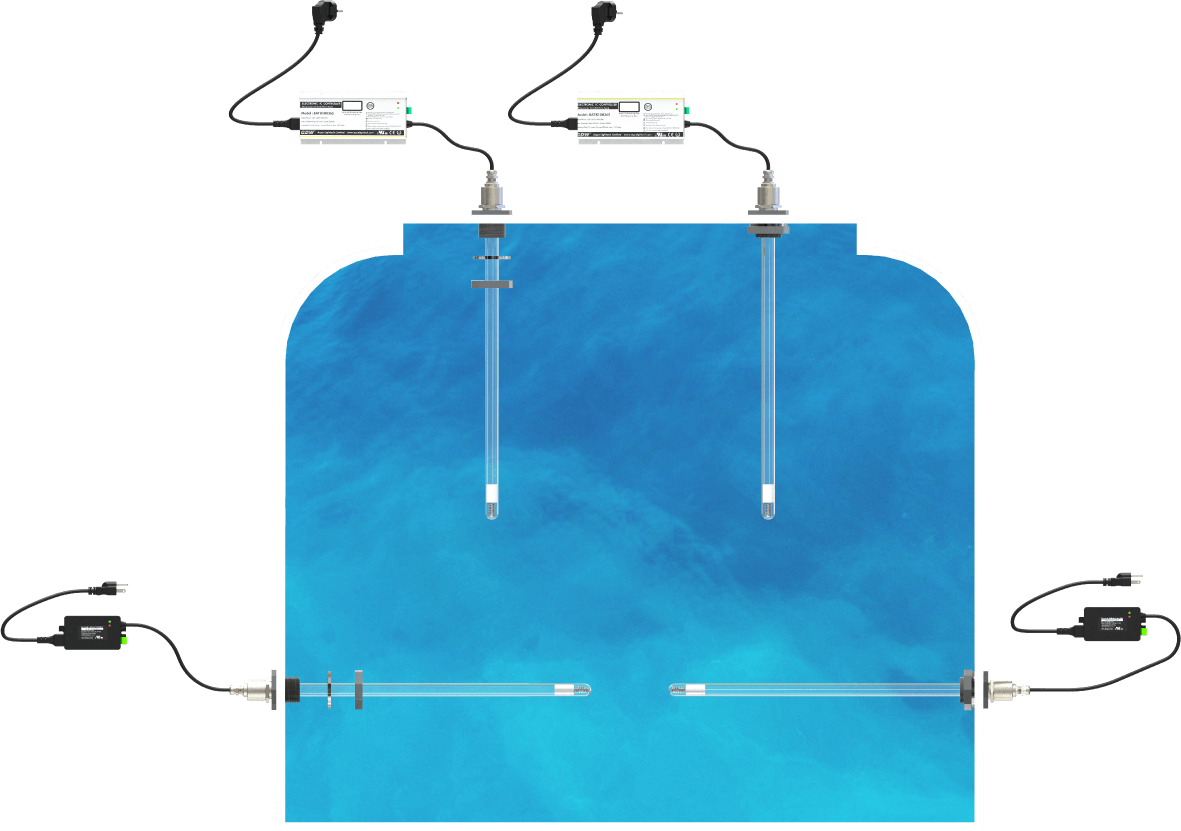

INSTALLATIONlayout

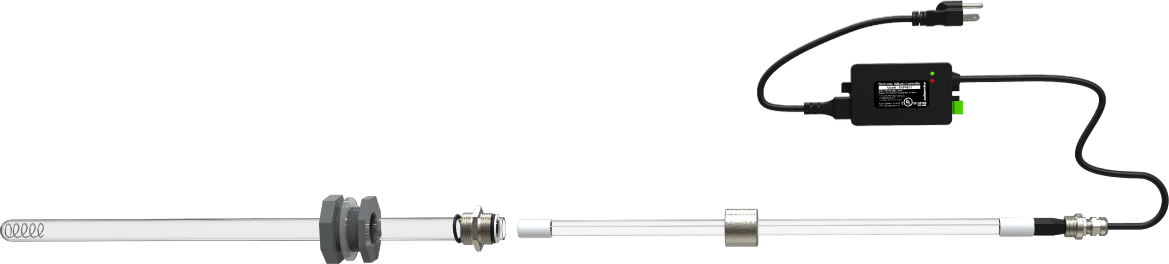

EXPLODEDview
