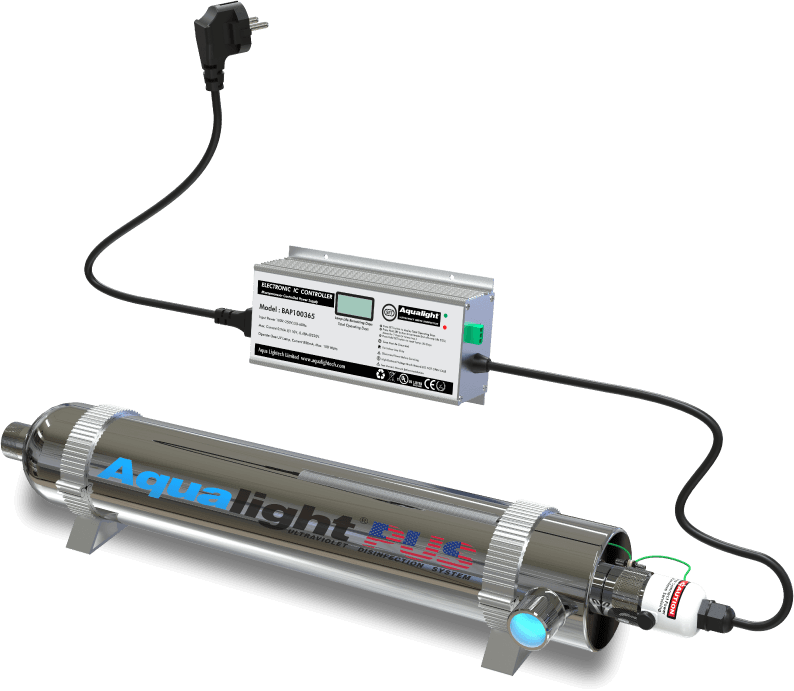

Advanced Model PUS6 to PUS50
Flow rate 6gpm up to 55gpm, Resitential POU/
POE, Operation status visible and audible, Lamp
life 365 days countdown, Total running days

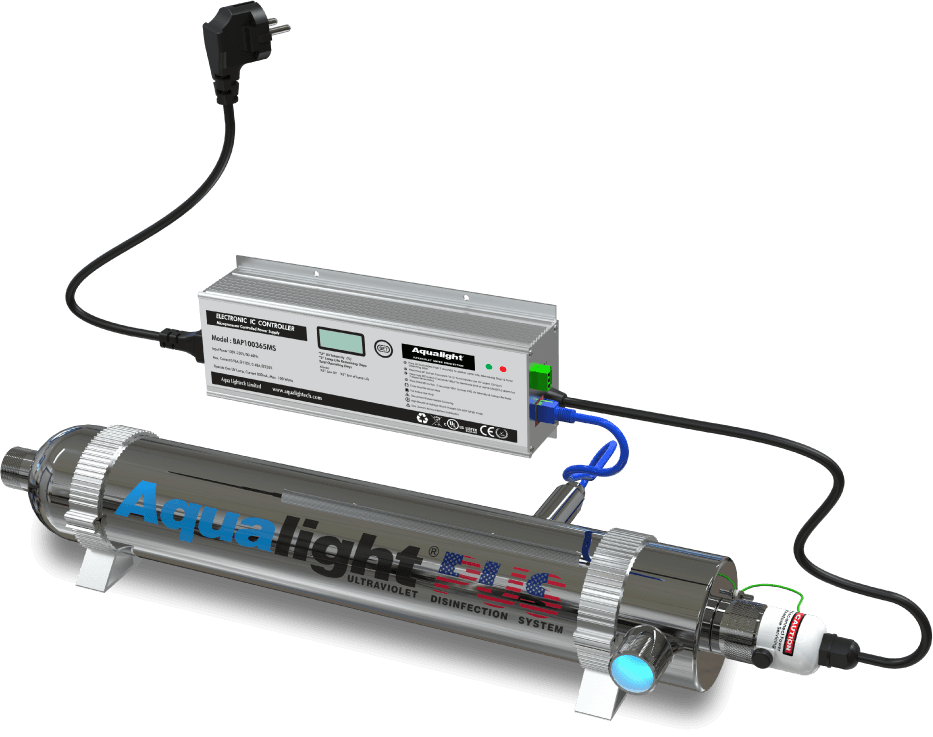

Monitored Model PUS6MS to PUS50MS
Flow rate 6gpm up to 50gpm, Resitential POU/POE,
Operation status visible and audible, Lamp life 365 days
countdown, Total running days, Low intensity alarm
| Model | PUS6 | PUS9 | PUS13 | PUS24 | PUS35 | PUS50 |
| Basic Controller | Part No. BAP40365, Universal Voltage100V.-250V./ 50-60Hz., 18*9.5*5cm (7.1*3.7*2 in.) | Part No. BAP100365, Universal Voltage100V.-250V./ 50-60Hz., 18*9.5*5cm (7.1*3.7*2 in.) | ||||
| Features | Lamp Operating Indicator, Audible Lamp Failure, Lamp Life 365 Days Countdown, Total Running Days, Dry Contact | |||||
| Monitored | PUS6MS | PUS9MS | PUS13MS | PUS24MS | PUS35MS | PUS50MS |
| Monitored Controller | Part No. BAP40365MS, Universal Voltage100V.-250V./50-60Hz., 24*9.5*5cm (9.5*3.7*2 in.) | Part No. BAP100365MS, Universal Voltage100V.-250V./50-60Hz., 24*9.5*5cm (9.5*3.7*2 in.) | ||||
| Sensor | Part No. GDS254NM15-V, RJ45 Connection, SS316 | |||||
| Features | Lamp Operating Indicator, Audible Lamp Failure, Ultraviolet Intensity Monitoring, Lamp Life 365 Days Countdown, Total Running Days, Dry Contact | |||||
| Flow Rates @ 30mJ/cm² | 6gpm,22.7lpm, 1.4m³/hr | 9gpm, 34lpm, 2m³/hr | 13gpm, 49lpm, 3m³/hr | 24gpm, 91lpm, 5.5m³/hr | 35gpm, 132lpm, 8m³/hr | 50gpm, 190lpm, 11m³/hr |
| Flow Rates @ 40mJ/cm² | 4.5gpm,17lpm, 1.0m³/hr | 6.8gpm, 25.7lpm, 1.54m³/hr | 9.8gpm, 37.1lpm, 2.23m³/hr | 18gpm, 68lpm, 4.1m³/hr | 26.3gpm, 99.5lpm, 6m³/hr | 37.5gpm, 142lpm, 8.5m³/hr |
| Inlet / Outlet | ¾” | ¾” | 1” | 1” | 1” | 1½” |
Ultraviolet Lamp  | USAL505T5L 28 Watts | USAL635T5L 32 Watts | USAL843T5L 41Watts | USAL512T5L-HO 55 Watts | USAL702T5L-HO 66 Watts | USAL846T5L-HO 90 Watts |
| Quartz Sleeve | QS535 | QS665 | QS890 | QS542 | QS732 | QS890 |
| ▶ Flow Rates Stated at 95% UV Transmittance of End of Lamp Life, 20ºC | ||||||

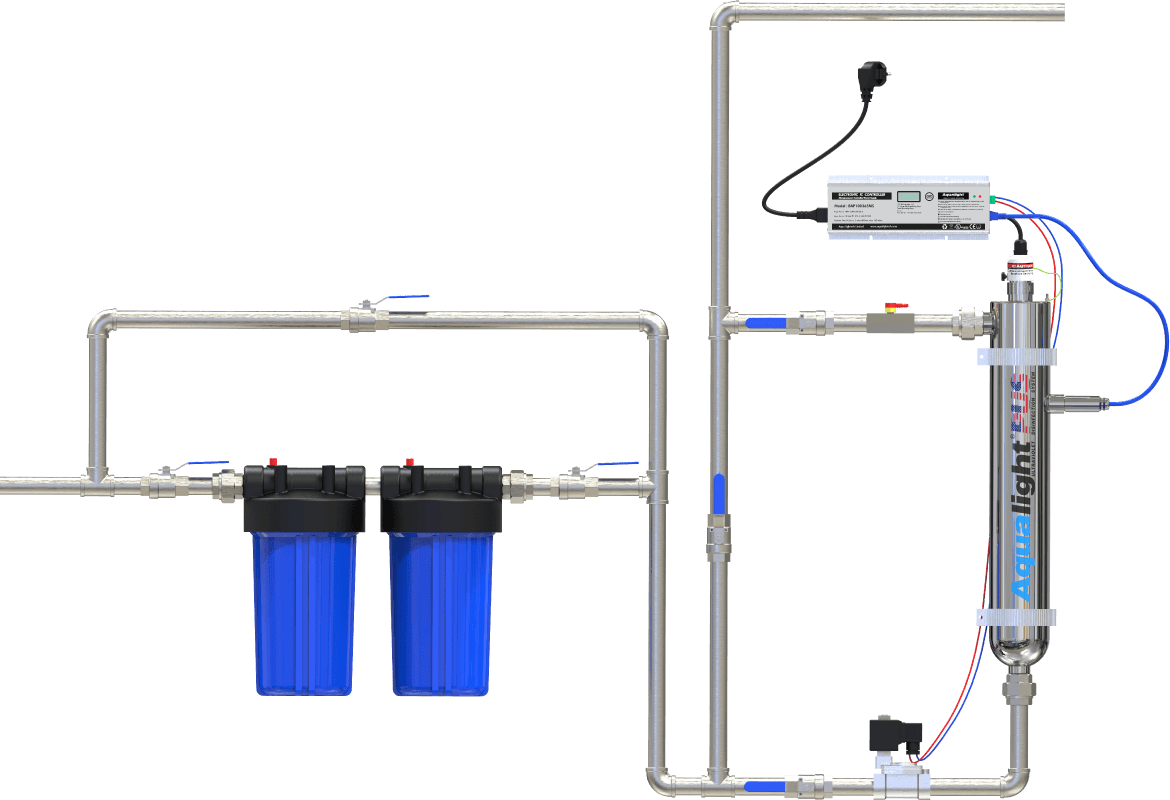

INSTALLATIONlayout
DIMENSIONdata
unit: mm
| Model No. | L | C | F | G | H | O.D. |
| PUS6 / PUS6MS | 580 | 519 | 30 | 150 | 19 | 63.5 |
| PUS9 / PUS9MS | 710 | 649 | 30 | 150 | 21 | 63.5 |
| PUS13 / PUS13MS | 942 | 874 | 30 | 150 | 21 | 63.5 |
| PUS24 / PUS24MS | 603 | 531 | 30 | 150 | 27 | 89.0 |
| PUS35 / PUS35MS | 793 | 721 | 30 | 150 | 27 | 89.0 |
| PUS50 / PUS50MS | 950 | 878 | 30 | 150 | 32 | 89.0 |
