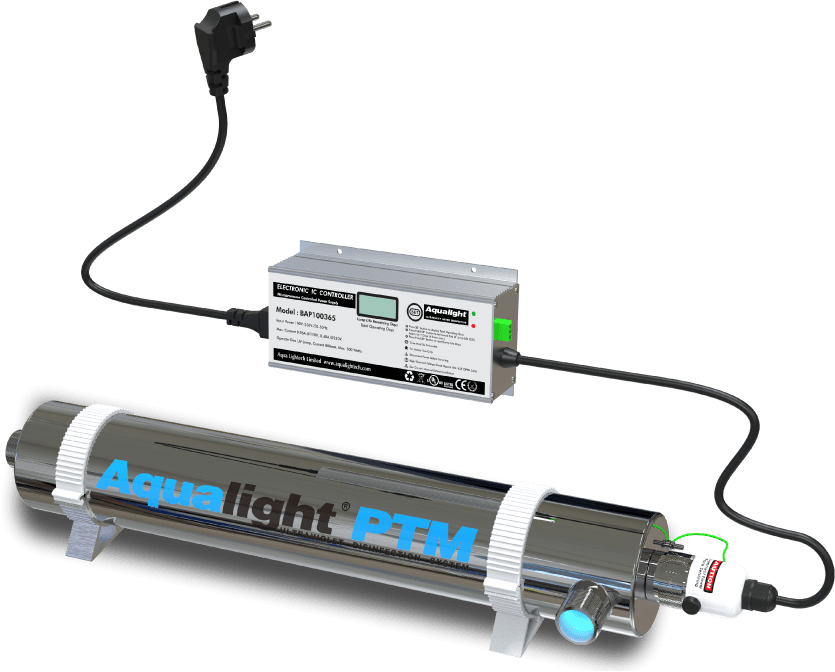

Advanced Model PTM2 to PTM52
Flow rate 2gpm up to 52gpm, Resitential POU/
POE, Operation status visible and audible, Lamp
life 365 days countdown, Total running days

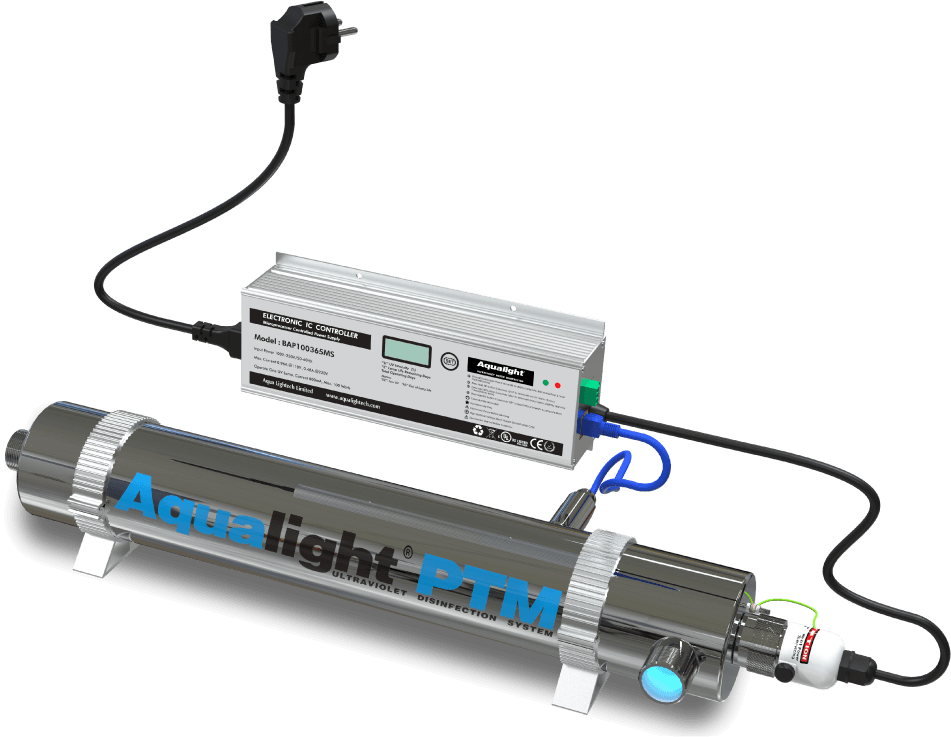

Monitored Model PTM2S to PTM52S
Flow rate 2gpm up to 52gpm, Resitential
POU/POE, Operation status visible and
audible, Lamp life 365 days countdown,
Total running days, Low intensity alarm
| Model | PTM2 | PTM4 | PTM6 | PTM8 | PTM12 |
| Advanced Controller | Part No. BAP40365, Universal Voltage100V.-250V./50-60Hz., 18*9.5*5cm (7.1*3.7*2 in.) | ||||
| Features | Lamp Operating Indicator, Audible Lamp Failure, Lamp Life 365 Days Countdown, Total Running Days, Dry Contact | ||||
| Monitored | PTM2S | PTM4S | PTM6S | PTM8S | PTM12S |
| Monitored Controller | Part No. BAP40365MS, Universal Voltage100V.-250V./50-60Hz., 24*9.5*5cm (9.5*3.7*2 in.) | ||||
| Sensor | Part No. GDS254NM15-V, RJ45 Connection, SS316 | ||||
| Features | Lamp Operating Indicator, Audible Lamp Failure, Ultraviolet Intensity Monitoring, Lamp Life 365 Days Countdown,Total Running Days, Dry Contact | ||||
| Flow Rates @ 30mJ/cm² | 2gpm, 7.5lpm, 0.5m³/hr | 4gpm, 15.1lpm, 1.0m³/hr | 6gpm,22.7lpm, 1.4m³/hr | 8gpm, 30.2lpm, 1.8m³/hr | 12gpm, 45.4lpm, 3.0m³/hr |
| Flow Rates @ 40mJ/cm² | 1.5gpm, 5.7lpm, 0.34m³/hr | 3gpm, 11.4lpm, 0.7m³/hr | 4.5gpm,17lpm, 1.0m³/hr | 6gpm, 22.7lpm, 1.4m³/hr | 9gpm, 34.1lpm, 2.0m³/hr |
| Inlet / Outlet | ¼” or ½” | ½” | ¾” | ¾” | 1” |
| Ultraviolet Lamp | GPH287T5L/4-LT 14 Watts | GPH330T5L/4-LT 19 Watts | GPH505T5L/4-LT 28 Watts | GPH645T5L/4-LT 32 Watts | G36T5L/4-LT 39 Watts |
| Quartz Sleeve | QS331 | QS375 | QS535 | QS665 | QS890 |
| Model | PTM18 | PTM24 | PTM35 | PTM42 | PTM52 |
| Advanced Controller | Part No. BAP100365, Universal Voltage100V.-250V./50-60Hz., 18*9.5*5cm (7.1*3.7*2 in.) | ||||
| Features | Lamp Operating Indicator, Audible Lamp Failure, Lamp Life 365 Days Countdown, Total Running Days, Dry Contact | ||||
| Monitored | PTM18S | PTM24S | PTM35S | PTM42S | PTM52S |
| Monitored Controller | Part No. BAP100365MS, Universal Voltage100V.-250V./50-60Hz., 24*9.5*5cm (9.5*3.7*2 in.) | ||||
| Sensor | Part No. GDS254NM15-V, RJ45 Connection, SS316 | ||||
| Features | Lamp Operating Indicator, Audible Lamp Failure, Ultraviolet Intensity Monitoring, Lamp Life 365 Days Countdown,Total Running Days, Dry Contact | ||||
| Flow Rates @ 30mJ/cm² | 18gpm, 68lpm, 4.1m³/hr | 24gpm, 90.8lpm, 5.5m³/hr | 35gpm, 132.4lpm, 7.9m³/hr | 42gpm, 159lpm, 9.5m³/hr | 52gpm, 196.8lpm, 11.8m³/hr |
| Flow Rates @ 40mJ/cm² | 13.5gpm, 51lpm, 3.1m³/hr | 18gpm, 68lpm, 4.1m³/hr | 26.3gpm, 99.5lpm, 6m³/hr | 31.5gpm,119lpm, 7.2m³/hr | 39gpm, 147.6lpm, 9m³/hr |
| Inlet / Outlet | 1” | 1” | 1” | 1½” | 1½ |
| Ultraviolet Lamp | GHO422T5L/4-LT 40 Watts | GHO512T5L/4-LT 50 Watts | GHO702T5L/4-LT 65 Watts | GHO36T5L/4-LT 80 Watts | GHO1052T5L/4-LT 100 Watts |
| Quartz Sleeve | QS452 | QS542 | QS732 | QS890 | QS1082 |
| ▶ Flow Rates Stated at 95% UV Transmittance of End of Lamp Life, 20ºC | |||||

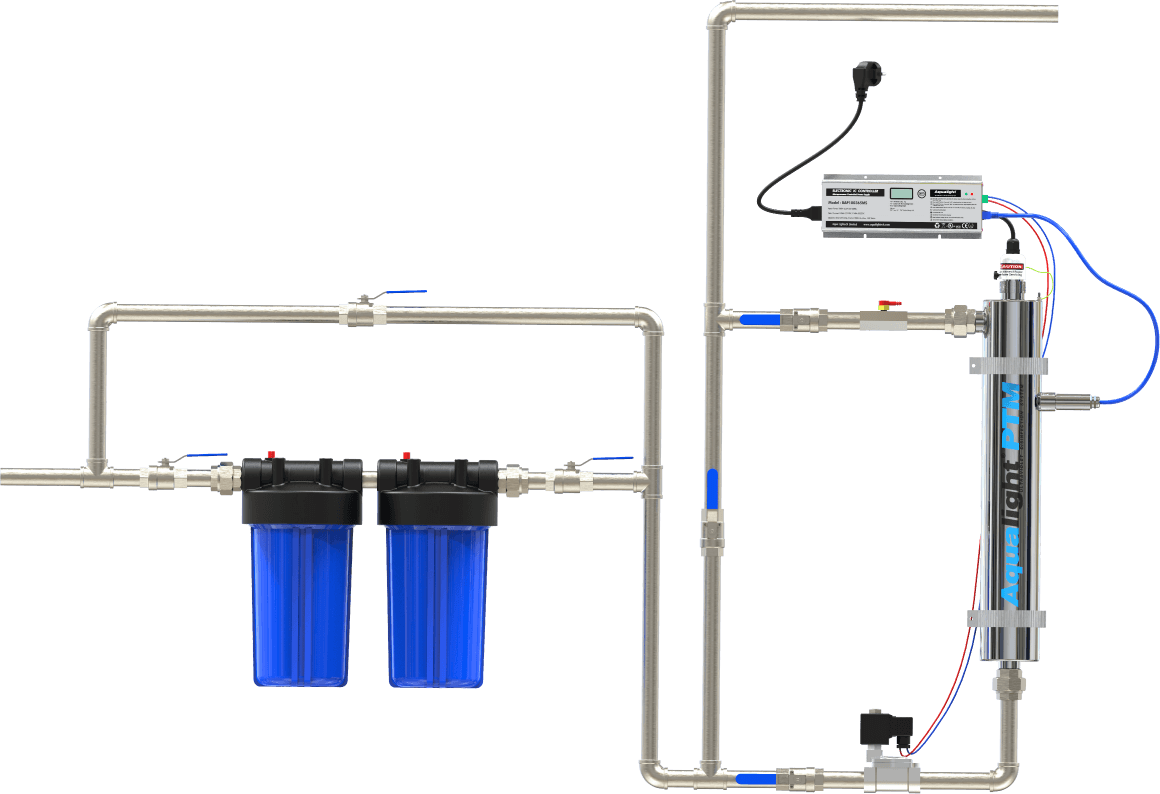

INSTALLATIONlayout

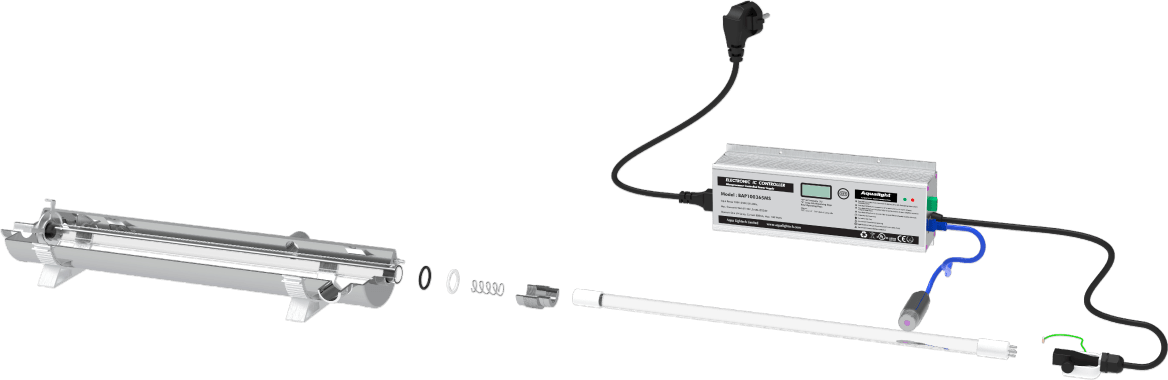

EXPLODEDview
DIMENSIONdata
unit: mm
| Model No. | L | C | F | G | H | O.D. |
| PTM2 / PTM2S | 387 | 314 | 24 | 150 | 17 | 63.5 |
| PTM4 / PTM4S | 431 | 358 | 24 | 150 | 19 | 63.5 |
| PTM6 / PTM6S | 591 | 518 | 30 | 150 | 19 | 63.5 |
| PTM8 / PTM8S | 721 | 648 | 30 | 150 | 21 | 63.5 |
| PTM12 / PTM12S | 946 | 873 | 30 | 150 | 21 | 63.5 |
| PTM18 / PTM18S | 508 | 435 | 30 | 150 | 27 | 89.0 |
| PTM24 / PTM24S | 598 | 525 | 30 | 150 | 27 | 89.0 |
| PTM35 / PTM35S | 788 | 715 | 30 | 150 | 27 | 89.0 |
| PTM42 / PTM42S | 946 | 873 | 30 | 150 | 32 | 89.0 |
| PTM52 / PTM52S | 1138 | 1065 | 30 | 150 | 32 | 89.0 |
