ULTRAVIOLET WATER DISINFECTION

swp-Aqualight

series

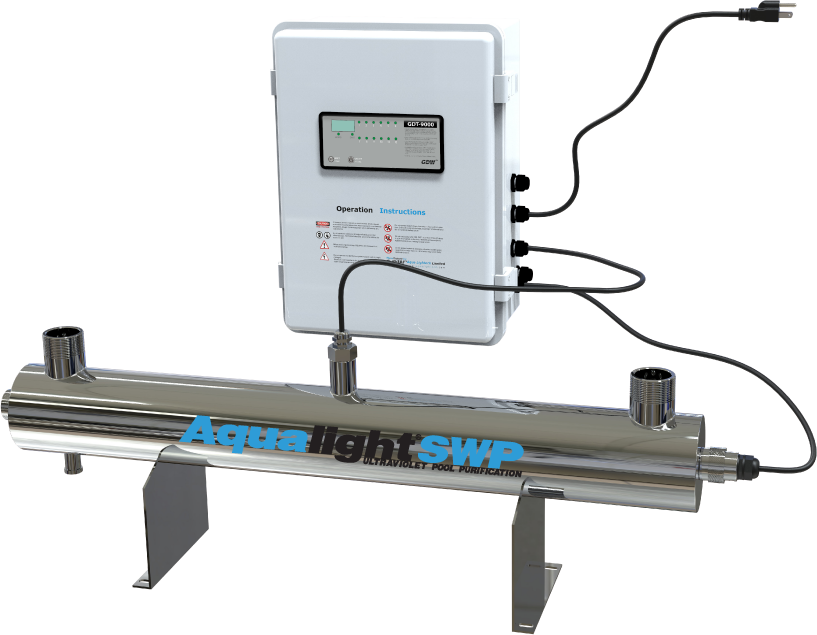

swp - Aqualight
Model SWP25 - SWP50 - SWP70

Flow rate 25gpm, 50gpm and 70gpm, Operation
status visuabl and audible, Lamp life timer 9000
hours, Total running days

swp - Aqualight
Model SWP25 SWP50 SWP70
Pool Volume 6,000 Gal. (22,700 L) 16,000 Gal. (60,560 L) 25000 Gal. (94,600 L)
Flow Rates @ 30mJ/cm2 25gpm, 5.7m3/hr. 50gpm, 11m3/hr. 70gpm, 16m3/hr.
Inlet / Outlet 2” 2” 2”
Ultraviolet Lamp 1pc*GHO36T5L/4-LT, 80 Watts 2pcs*GHO36T5L/4-LT, 160Watts 2pcs*GPHA843T5L/4-LT, 210 Watts
Quartz Sleeve 1pc*QS900-BO 2pcs*QS900-BO 2pcs*QS900-BO
Ballast 1pc*GDB80095L2,
110V.-240V./50-60Hz.
2pcs*GDB80095L2,
110V.-240V./50-60Hz.
2pcs*GDB1200105L2,
110V.-240V./50-60Hz.
Timer Monitor Part No. GDT-9000, Lamp Operating Indicator, Audible Lamp Failure, Lamp Operating Hours up to 9000hr, Total Running Days, Dry Contact
Optional Sensor, Part No. GDS254NM20-V
Reaction Chamber Dimensions 36.6*7*11.8 inch (93*18*30 cm)
Control Panel Dimensions 11.8*6.7*15.7 inch (30*18*40 cm)
▶ Flow Rates Stated at 95% UV Transmittance of End of Lamp Life, 20ºC

INSTALLATIONlayout

swp-INSTALLATION-Aqualight

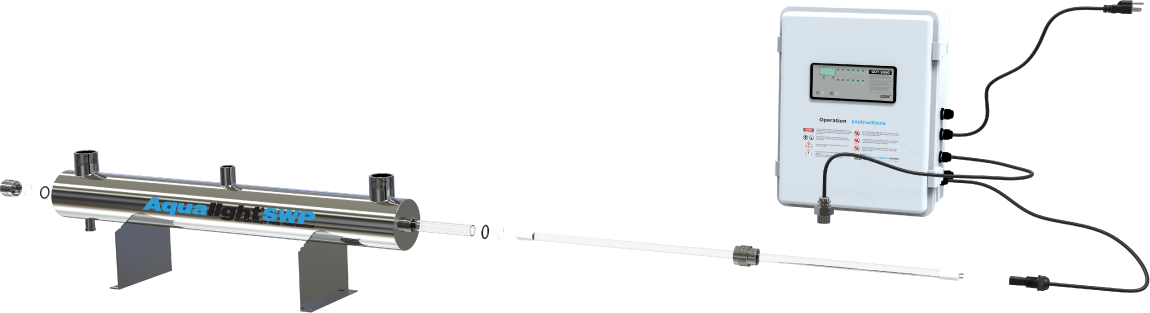

EXPLODEDview

swp-EXPLODED-Aqualight

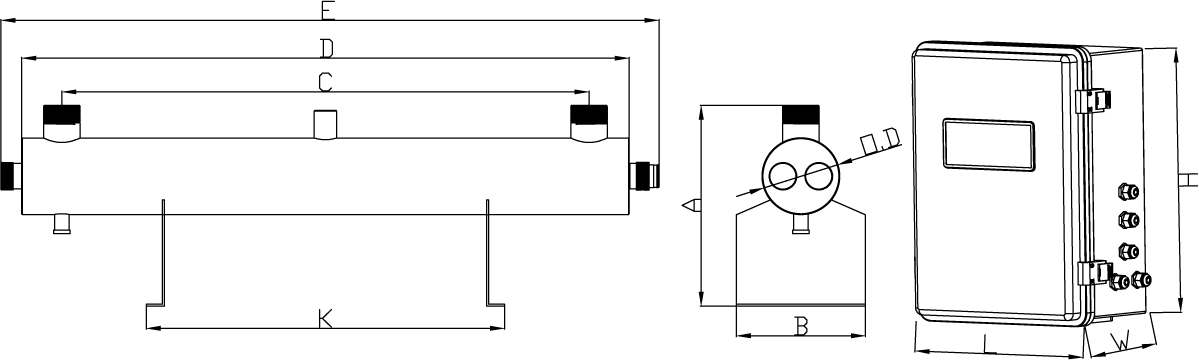

DIMENSIONdata

swp-DIMENSION-Aqualight

unit: mm

Model No.Lamp No.ABO.D.CDEKControl Panel
LWH
SWP25 1 300 180 108 740 847 930 518 300 180 400
SWP50 2 300 180 108 740 847 930 518 300 180 400
SWP70 2 300 180 108 740 847 930 518 300 180 400
