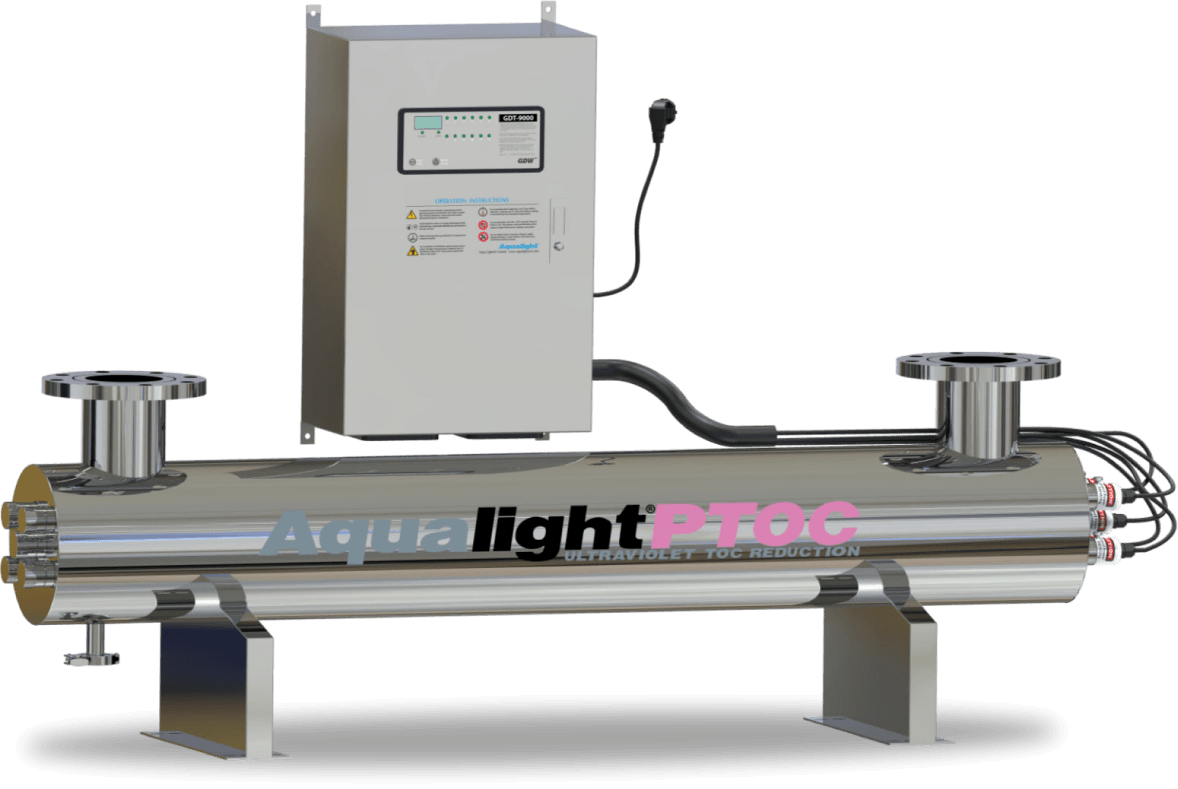

Model PTOC12 to PTOC150
Flow rate 12gpm up to 150gpm. The PTOC
reduction systems are designed specifically for
the reduction of total organic carbon level
These systems are designed with shorter wavelength UV lamps emitting their spectral output at 185nm. These "shorter" wavelength lamps emit more energy than standard 254nm lamps producing hydroxyl free radicals (OH) which is turn oxidizes most organics into carbon dioxide (CO2) and water (H2O). All TOC reduction systems produce UV dosages in excess 120mJ/cm2 at the end of lamp life
| Model | PTOC12 | PTOC20 | PTOC25 | PTOC30 | PTOC35 | PTOC50 | PTOC60 | PTOC75 | PTOC85 | PTOC100 | PTOC125 | PTOC150 | |
| Flow Rates @ 120mJ/ cm2 |
12gpm |
20gpm (4.5m3/hr) |
25gpm (5.7m3/hr) |
30gpm (6.8m3/hr) |
35gpm (8m3/hr) |
50gpm (11m3/hr) |
60gpm (14m3/hr) |
75gpm (17m3/hr) |
85gpm (19m3/hr) |
100gpm (23m3/hr) |
125gpm (28m3/hr) |
150gpm (34m3/hr) |
|
| Inlet / Outlet | ¾” | 1” | 1” | 1½” | 1½” | 1½” | 2” | 2” | 2” | 3” | 3” | 3” | |
| Ultraviolet Lamp | Part# GHO36T5VH-LT, 80 Watts, 800mA, 185nm | Part# GHO64T5VH-LT, 155 Watts, 800mA, 185nm |
|||||||||||
| Quartz Sleeve | Part# QS900-BO, 900mm, Both Sides Open | Part# QS1575-BO, 1575mm, Both Sides Open | |||||||||||
| Ballasts | Par# GDB80095L2, 110V.-240V./50-60Hz. | Part# GDB800155L2, 110V.-240V./50-60Hz. | |||||||||||
| Number of Lamp/ Sleeve/Ballasts | 2 | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | |
| Timer Monitor | Lamp Operating Hours Monitor, Part No. GDT-9000 | ||||||||||||
| Features | Lamp Operating Indicator, Audible Lamp Failure, Lamp Operating Hours up to 9000hr, Total Running Days, Dry Contact | ||||||||||||
| ▶ Flow Rates Stated at 95% UV Transmittance of End of Lamp Life, 20ºC | |||||||||||||

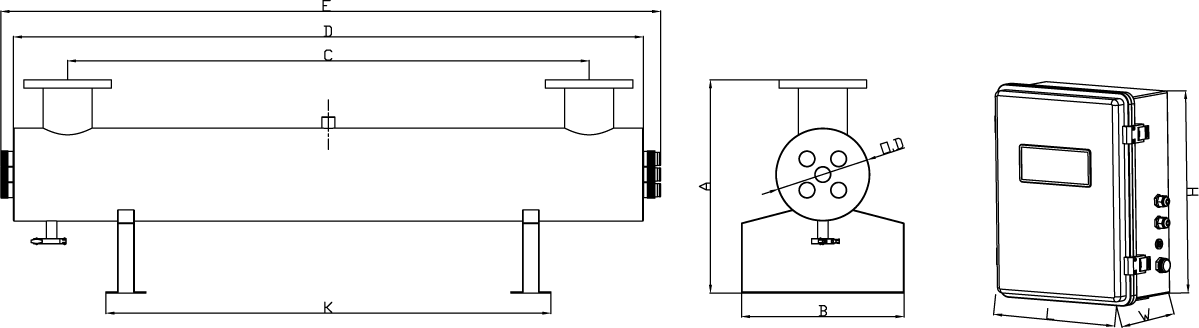

DIMENSIONdata
unit: mm
| Model No. | Lamp No. | A | B | O.D. | C | D | E | K | Control Panel | ||
| L | W | H | |||||||||
| PTOC12 | 2 | 346 | 250 | 133 | 740 | 847 | 930 | 540 | 300 | 180 | 400 |
| PTOC20 | 3 | 418 | 300 | 168 | 678 | 847 | 930 | 640 | 400 | 200 | 500 |
| PTOC25 | 4 | 479 | 390 | 219 | 650 | 847 | 930 | 640 | 400 | 200 | 500 |
| PTOC30 | 5 | 479 | 390 | 219 | 650 | 847 | 930 | 640 | 400 | 200 | 500 |
| PTOC35 | 6 | 479 | 390 | 219 | 650 | 847 | 930 | 640 | 400 | 200 | 500 |
| PTOC50 | 4 | 504 | 390 | 219 | 1250 | 1512 | 1590 | 1070 | 450 | 190 | 600 |
| PTOC60 | 5 | 504 | 390 | 219 | 1250 | 1512 | 1590 | 1070 | 450 | 190 | 600 |
| PTOC75 | 6 | 504 | 390 | 219 | 1250 | 1512 | 1590 | 1070 | 450 | 190 | 600 |
| PTOC85 | 7 | 504 | 390 | 219 | 1250 | 1512 | 1590 | 1070 | 450 | 190 | 600 |
| PTOC100 | 8 | 504 | 390 | 219 | 1185 | 1512 | 1590 | 1070 | 600 | 190 | 700 |
| PTOC125 | 10 | 560 | 390 | 275 | 1185 | 1512 | 1590 | 1070 | 600 | 190 | 700 |
| PTOC150 | 12 | 560 | 390 | 275 | 1185 | 1512 | 1590 | 1070 | 600 | 190 | 700 |
