series

Model LTOC3 to LTOC35

Flow rate 3gpm up to 35gpm. The LTOC reduction systems
are designed specifically for the reduction of total organic
carbon level

These systems are designed with shorter wavelength UV lamps emitting their spectral output at 185nm. These "shorter" wavelength lamps emit more energy than standard 254nm lamps producing hydroxyl free radicals (OH) which is turn oxidizes most organics into carbon dioxide (CO2) and water (H2O). All TOC reduction systems produce UV dosages in excess 120mJ/cm2 at the end of lamp life

Model

LTOC3

LTOC6

LTOC9

LTOC12

LTOC20

LTOC25

LTOC30

LTOC35

Flow Rates @ 120mJ/ cm2

3gpm
(0.68m3/hr)

6gpm
(1.4m3/hr)

9gpm
(2.1m3/hr)

12gpm
(3.0m3/hr)

20gpm
(4.5m3/hr)

25gpm
(5.7m3/hr)

30gpm
(6.8m3/hr)

35gpm
(8m3/hr)

Inlet / Outlet

½”

¾”

1”

1½”

Ultraviolet Lamp

Part# G36T5VH-LT, 39 Watts, 425mA, 185nm

Part# GHO36T5VH-LT, 80 Watts, 800mA, 185nm

Quartz Sleeve

Part# QS900-BO, 900mm, Both Sides Open

Ballasts

Par# GDB42540L2, 110V.-240V./50-60Hz.

Par# GDB80095L2, 110V.-240V./50-60Hz.

Number of Lamp/ Sleeve/Ballasts

Timer Monitor

Lamp Operating Hours Monitor, Part No. GDT-9000

Features

Lamp Operating Indicator, Audible Lamp Failure, Lamp Operating Hours up to 9000hr, Total Running Days, Dry Contact

▶ Flow Rates Stated at 95% UV Transmittance of End of Lamp Life, 20ºC

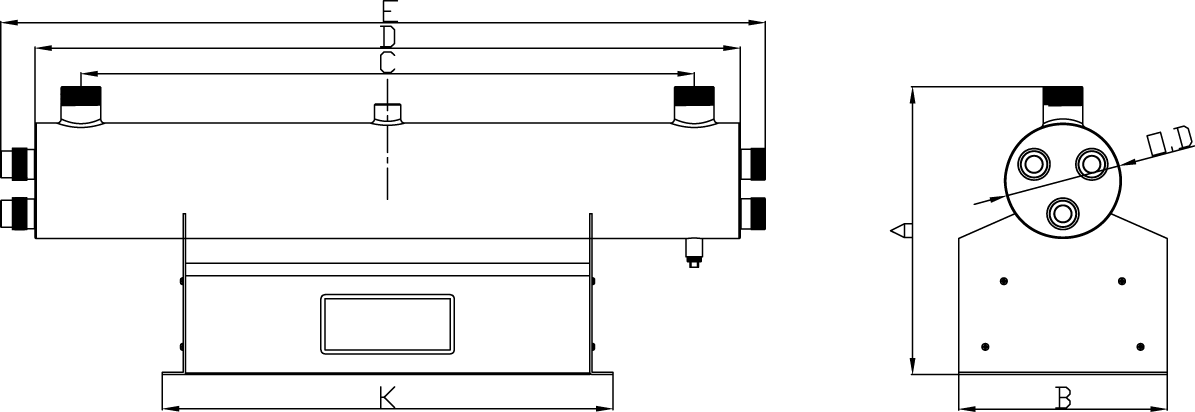

DIMENSIONdata

unit: mm

Model No.	Lamp No.	A	B	O.D.	C	D	E	K
LTOC3	1	300	180	108	740	847	930	518
LTOC6	2	300	180	108	740	847	930	518
LTOC9	3	346	250	133	740	847	930	540
LTOC12	2	346	250	133	740	847	930	540
LTOC20	3	418	300	168	678	847	930	640
LTOC25	4	479	390	219	650	847	930	640
LTOC30	5	479	390	219	650	847	930	640
LTOC35	6	479	390	219	650	847	930	640
